At Droneview.be, we use the DJI Zenmuse Z30 for detailed drone inspections requiring extreme zoom. With 30x optical zoom and 6x digital zoom, this camera provides unparalleled capabilities for inspecting infrastructure, buildings, and industrial facilities without bringing the drone dangerously close.
Why Choose the Zenmuse Z30?
The Z30 is designed for professionals working in inspection, security, and monitoring. Its main advantages include:
- Extreme detail without risk: Thanks to its powerful zoom, we can capture small details from a safe distance, such as cracks in a tower or loose bolts on a wind turbine.
- Efficiency: Traditional inspections often require scaffolding or rope access. With the Z30, we can complete a thorough visual inspection in minutes.
- Fast data collection: High-resolution images from a distance allow for quick assessments and faster decision-making.
Illustration of the Zoom Capability
To demonstrate the power of the Z30, we captured a series of images from the same location: 220 meters away and 65 meters high.

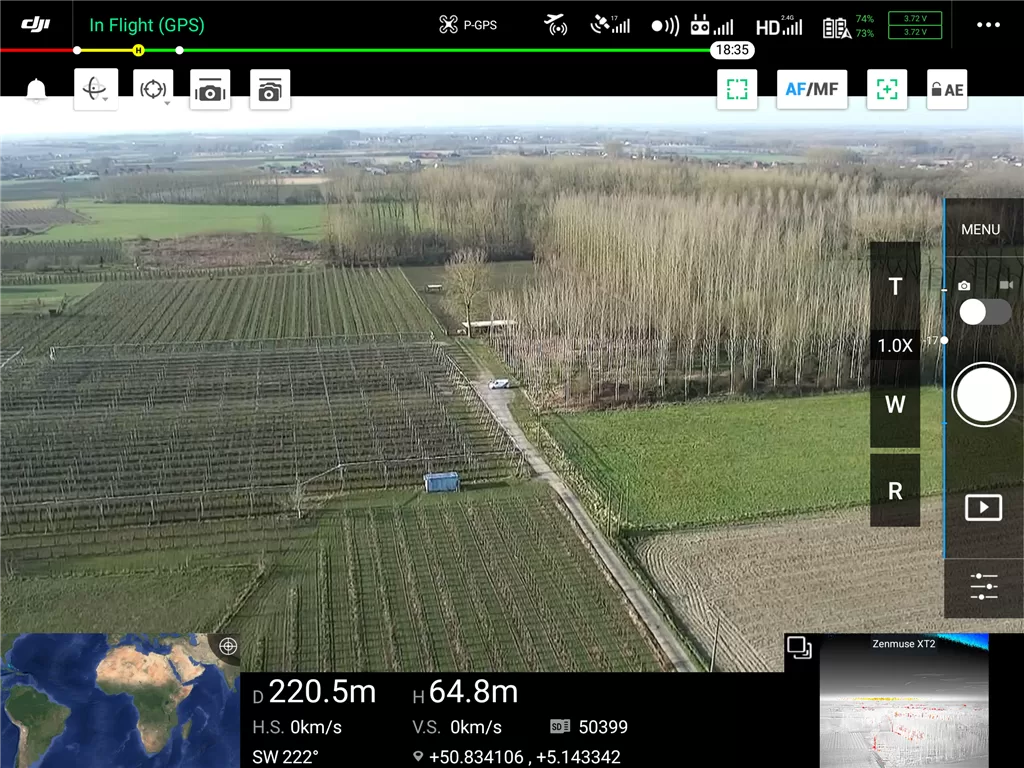

Screenshot from the DJI Crystalsky 7.85″ monitor
- 1x zoom: A wide-angle view without magnification.
- 4x zoom: A first close-up, already showing more details.
- 35x zoom: An extreme close-up, revealing even the smallest details.
As shown in the images, the Z30 allows for capturing sharp details from a great distance without the need for the drone to fly closer.
These photos were taken for illustration purposes in this article. If an even higher zoom level is needed, we will, of course, fly closer rather than staying at a distance of 220 meters as in this example.
Applications of the Z30 in Our Drone Inspections
1. High-voltage line and telecom tower inspection
For utility and telecom companies, the Z30 is a crucial tool. Cable connections, insulators, and fastenings can be safely inspected without power shutdowns or expensive climbing operations.
2. Wind turbine inspections
Even minor damage to a blade can cause significant efficiency losses. The Z30 enables us to detect cracks, erosion, or loose components without stopping the turbine.
3. Industrial facility inspections
Some industrial areas are difficult to access. With the Z30, we can inspect pipelines, storage tanks, and large factory roofs without disrupting operations.
4. Security and surveillance
The zoom function allows us to monitor large areas and capture detailed visuals, such as license plates or suspicious activities, while maintaining privacy compliance.
Technical Specifications of the DJI Zenmuse Z30
| Feature | Specification |
|---|---|
| Sensor | 1/2.8” CMOS |
| Resolution | 1920 x 1080 (Full HD) |
| Optical zoom | 30x |
| Digital zoom | 6x |
| Maximum focal length | 162 mm |
| Image stabilization | Yes (mechanical and electronic) |
| Compatible drones | DJI Matrice 200/210/600 |
The combination of optical and digital stabilization ensures crystal-clear images even at maximum zoom.
How Droneview.be Uses the Z30
We have integrated the Z30 into our Matrice 210 drone, which is ideal for stability and extended flight times. This allows us to:
- Provide high-detail images for technical reports
- Inspect hard-to-reach locations safely
- Detect problems early and reduce costs
Our experience with the Z30 has proven that it is an indispensable tool for professional drone inspections.
Want to know how this advanced zoom camera can benefit your business? Contact us today to explore the possibilities!
